Ultrasound Procedure Trainer

Overview

Training interns for an ultrasound-guided procedure on the neck is limited by equipment and supervision time. This VR game is an add-on training tool: it isn't a simulation of the procedure itself, but it trains the hand coordination the procedure needs — steering a probe and a needle together — in an engaging way, before interns practise with real probes on gel phantoms.

I'm a technical developer on a team of five, responsible for the maths behind hand movement and for the shaders.

Hand movement as segment intersection

The probe (shown as a flashlight) and the needle are both treated as line segments. Each frame I compute the closest points between the two segments; whether those points fall within both segments, how close they are, and where along the needle they lie decide whether the player is aiming correctly and what feedback to show.

public void calcIntersection(Vector3 currentFlash_Start, Vector3 currentFlash_End, Vector3 currentNeedle_Start,
    Vector3 currentNeedle_End, out Vector3 p0, out Vector3 p1, out bool onSegment, out bool intersects, out bool showBall)
{
    Vector3 r = currentFlash_End - currentFlash_Start;
    Vector3 s = currentNeedle_End - currentNeedle_Start;
    Vector3 q = currentFlash_Start - currentNeedle_Start;
    float dotqr = Vector3.Dot(q, r);
    float dotqs = Vector3.Dot(q, s);
    float dotrs = Vector3.Dot(r, s);
    float dotrr = Vector3.Dot(r, r);
    float dotss = Vector3.Dot(s, s);
    float denom = dotrr * dotss - dotrs * dotrs;
    float numer = dotqs * dotrs - dotqr * dotss;
    float t = numer / denom;
    float u = (dotqs + t * dotrs) / dotss;
    // The two points of intersection
    p0 = currentFlash_Start + t * r;
    p1 = currentNeedle_Start + u * s;
    // Is the intersection occurring along both line segments and does it intersect
    onSegment = false;
    intersects = false;
    showBall = false;
    if (0 <= t && t <= 1 && 0 <= u && u <= 1)
    {
        onSegment = true;
        if (offsetFocus <= u && u <= offsetFocus + focusRange)
        {
            showBall = true;
        }
    }
    if ((p0 - p1).magnitude <= marginOfError) intersects = true;
}

A location coordinator defines the start and end points of the segments, so the same system adapts to different scenarios, and a customization panel widens or narrows the allowed range of movement. Systems talk to each other through C# delegates, which let each developer work on a separate component while keeping everything connected.

Revealing targets with stencils

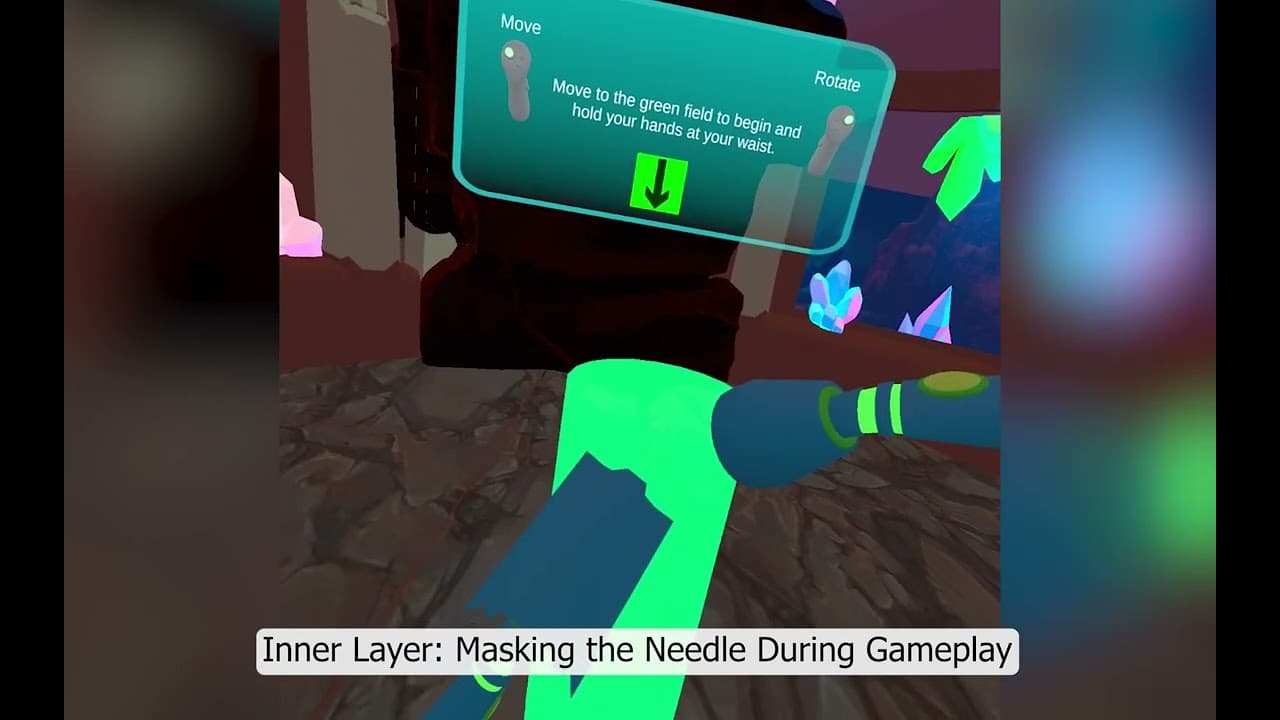

Players look for gems (bacteria, in an earlier version) that must be confirmed by lighting them with the flashlight — distinguishing them from non-collectible objects. Simply toggling objects on made them pop into view, so I built a nested stencil setup: an invisible mask writes a stencil reference where the flashlight reaches, and the gem shader only draws where that reference passes.

Tags { "Queue"="Geometry-1" }
ZWrite Off
ColorMask 0
Stencil
{
    Ref 2 // StencilRef
    Comp Always
    Pass Replace
}

Tags {
    "RenderType"="Transparent"
    "Queue"="Transparent"
}
Stencil
{
    Ref 2
    Comp LEqual
    Pass Keep
}

The mask renders before regular geometry and writes nothing to colour or depth — only the stencil. Layering several masks and references gives smooth, staged reveals instead of hard pops. Once the shader worked, I refined the look together with the artists.

Stencil Shader
